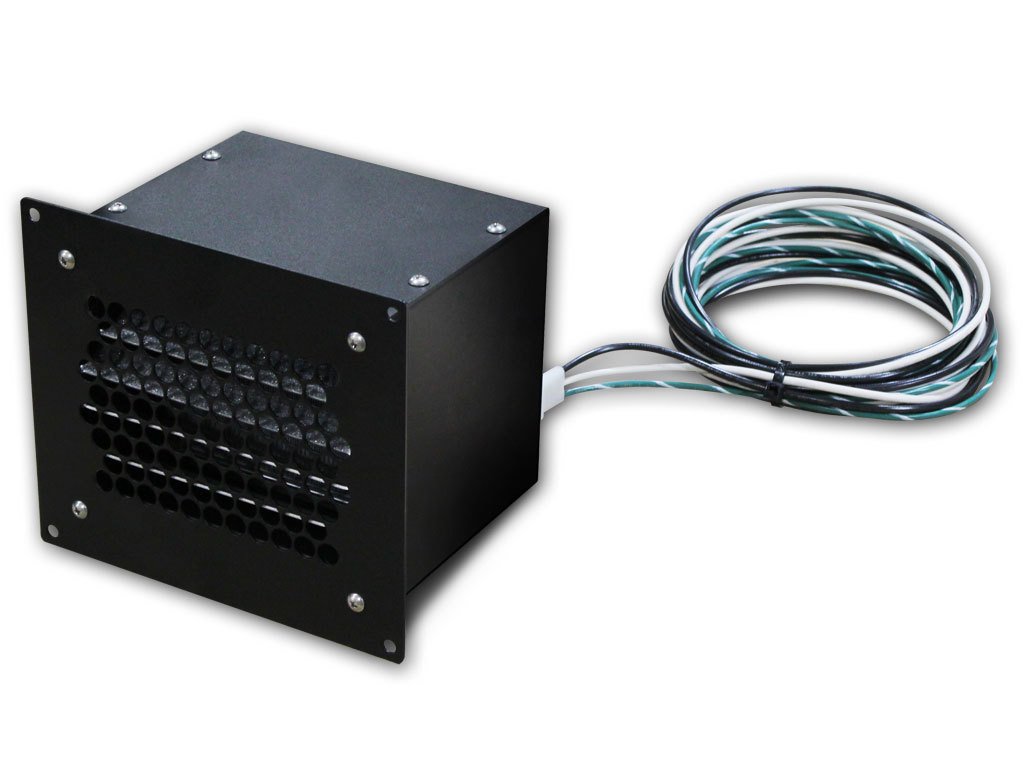

120v Electric Marine Heater Unit

U.S. Made  120v AC Electric Marine Heater Unit is made and designed to fit discretely in small, tight spaces. Making it an ideal choice for keeping your engine and cabin at a comfortable temperature. With options for a ducted face or grill get the heat where you need it.

The unit can be control via regular 120v thermostat or switch (not included). If you have a specific application give us a call and we can get you what you need.

Specs:

• Element Watts: 1480
• CFM (at blower): 106
• Decibels (dB): 48
• BTU: 5,000
• Total Amp draw: 13.3 @ 120 V.A.C.
• Unit size: 5.5" x 5.75" x 5.75"
• Grill size: 6" x 7"
• Intake needs to be 1 inch away from a surface or have a intake flange/hole

Unit Includes:

• 1 - 1001H Heater Unit
• 4 -  #10x 1/2 PH Tapping Screws
• 1 -  10 ft Harness (Includes white neutral, green ground, black positive)

Note: built to order

Installation:

The 1001H unit (ducted or grill) electrical is standard 110v AC 60 HRTZ 3 wire connection.

• Black = Power
• White = Neutral
• Green = Ground

It can be wired into existing 110V system as long as there is capacity for an additional 13.3 amps or run on dedicated circuit of 20 amps.

A control switch is not included with this unit and any switch that can handle 20 amp @ 120 volts AC will work.
