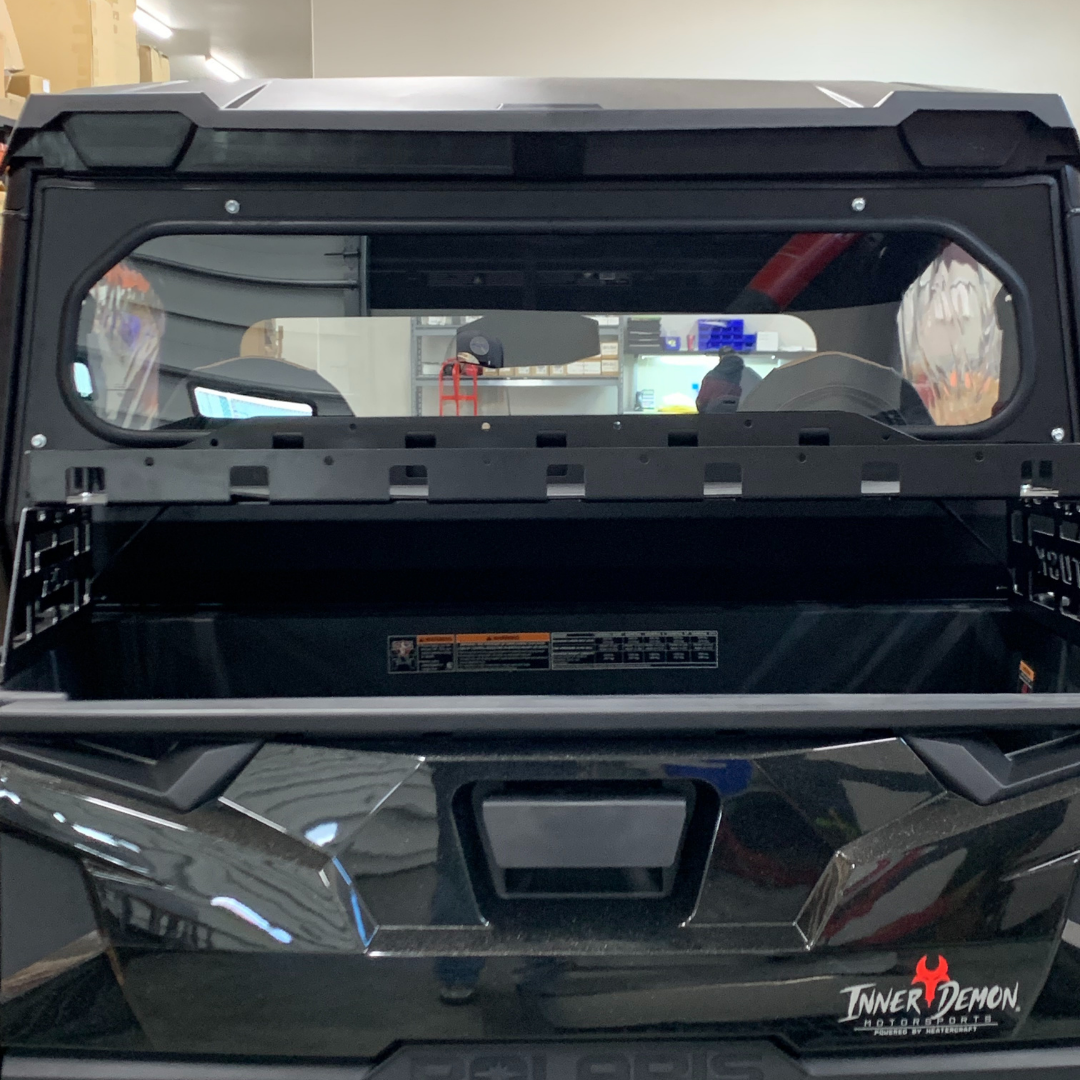

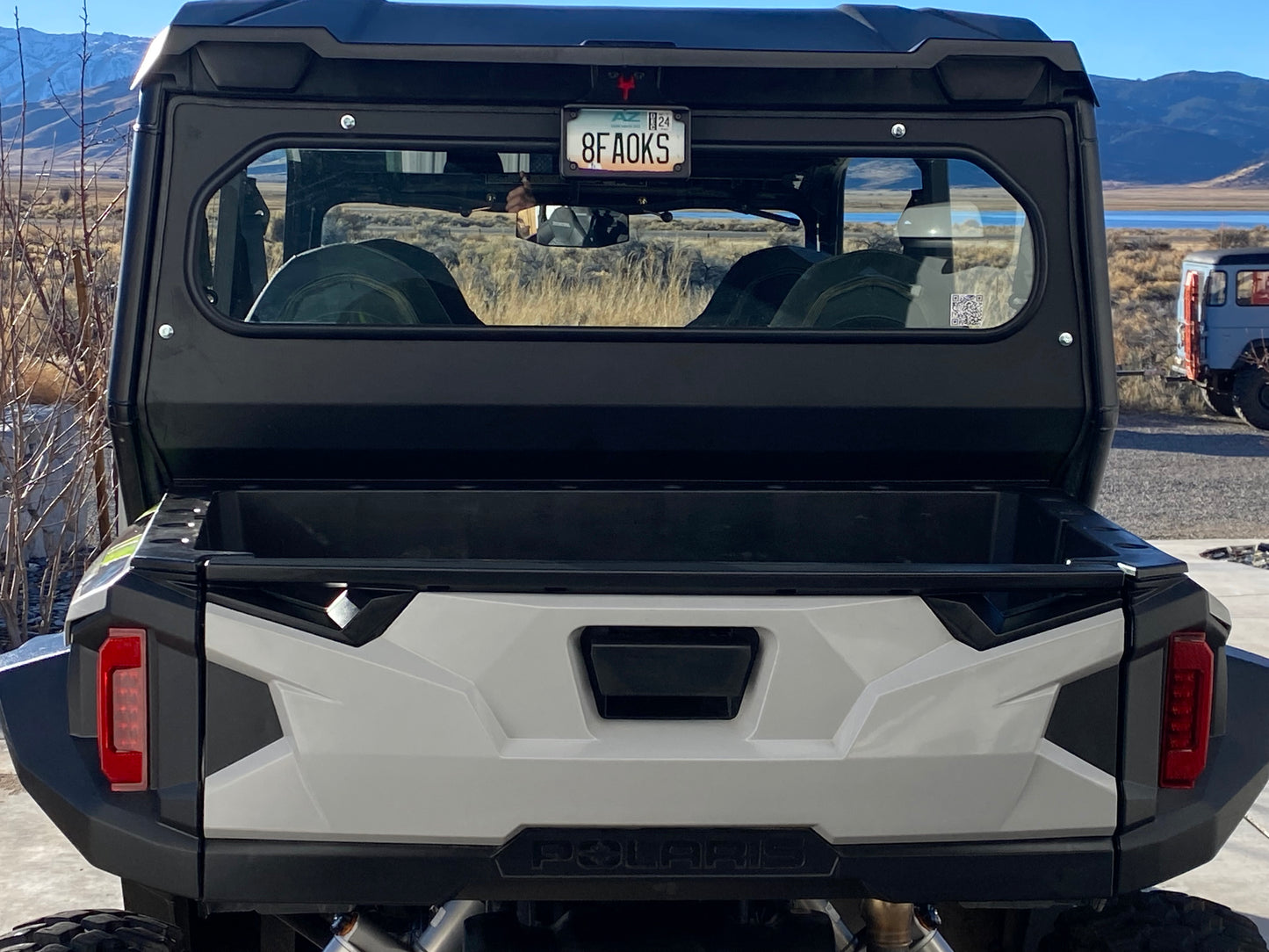

2018+ Polaris General Rear Glass Window
Couldn't load pickup availability
U.S. Made ONE PCS Polaris General Rear Glass Window is constructed with DOT-approved 1/4" laminated safety glass and a powder-coated aluminum frame, so you can trust it will stand up to anything thrown your way! You can drive with confidence, knowing that your window won't break down over time. Enjoy premium quality and added protection for your ride!
FEATURES:
Laser Cut ONE pcs Aluminum Frame with Black Powder coated Finish No filler plate
¼” DOT Laminated Safety Glass
Gasketed rails for tight fit to the roll cage
Simple Installation
Includes Heavy Duty Mounting Hardware
Fits: 2018 and Up Polaris General Models (2/4 seat)
Kit includes
- 2 - Profit cage mounting brackets (these re for the top section)
- 2 - Off SET Profit cage mounting brackets (these are for the side sections)
- 4 - M6x30mm bolts with washer
- 1 - One pcs rear widow frame with DOT glass
installation
- Prep the surface for the profit cage to free from dirt or debris
- Set rear window into opening and adjusting left/right and up/down
- Use the pro fit offset brackets (sides of the rear window) snap them into place over the rail and thread bolt through the Frame into the nut on the bracket
- Hand tight or just a couple of turns to start
- Note there is a left and right bracket Off set will be above the mounting hole location
- Using the full Profit cage bracket repeat the process on the top section (Hand tight or just a couple of turns to start)
- Once all bolt have started you can tight the frame down until you see the routing bracket are firmly set into place.
- DO NOT over tighten as is it can cause damage to the window frame/Glass
Tools Needed
- 10mm socket, wrench or nut driver
