360 Series

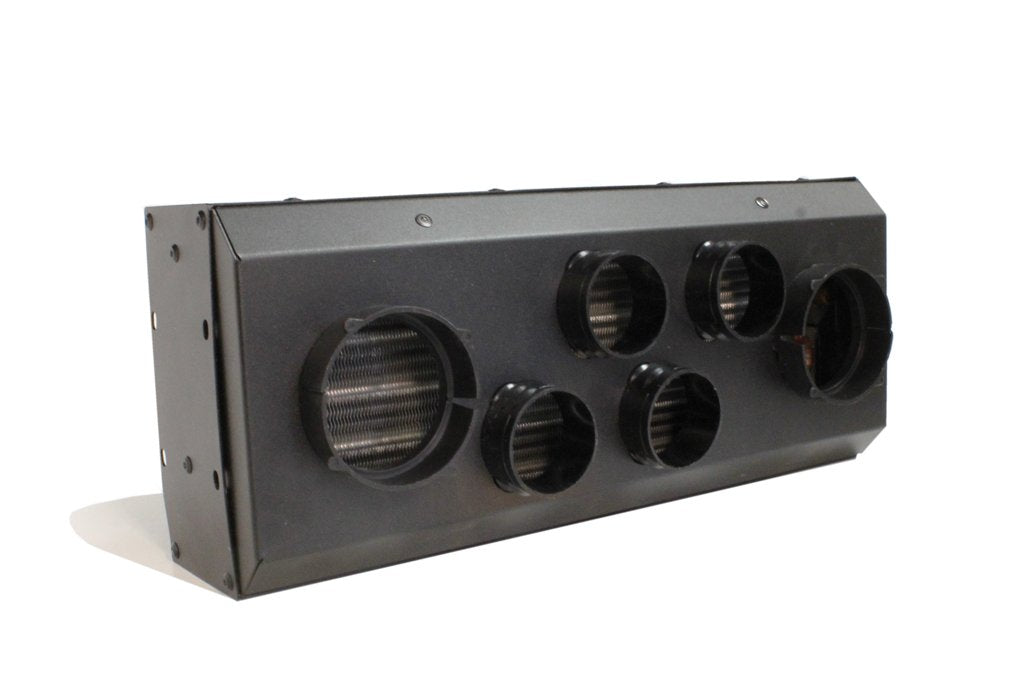

The 12 Volt, 40,000 BTU/hr, six vent heater is easily vented to bow and rear seating areas while the third can be ducted to the drivers seat. Our heaters are perfect for a late night boat ride, warming up after a swim or simply extending your season on the water.

Technical Specifications

• 12 Volt (for 24 Volt call 208-687-4400 PST or email contactus@heatercraft.com)
• 40,000 BTU Heater with 45 degree face
• 8% faster due to the 45 degree face
• Takes up 5% less space allowing more versatility during installation
• Lighter than previous models
• Amperage: Low 4.4, Med 5.8, High 8.5
• Maximum estimated BTU/h: 40,000
• Air flow: Low 230 cfm, Med 228 cfm, High 263 cfm.
• Hose barb: 5/8"

Dimensions: 16 W x 6.5 H x 9.5 D (without mounting brackets)

Installation Manual
Warranty

Heater Kits Include

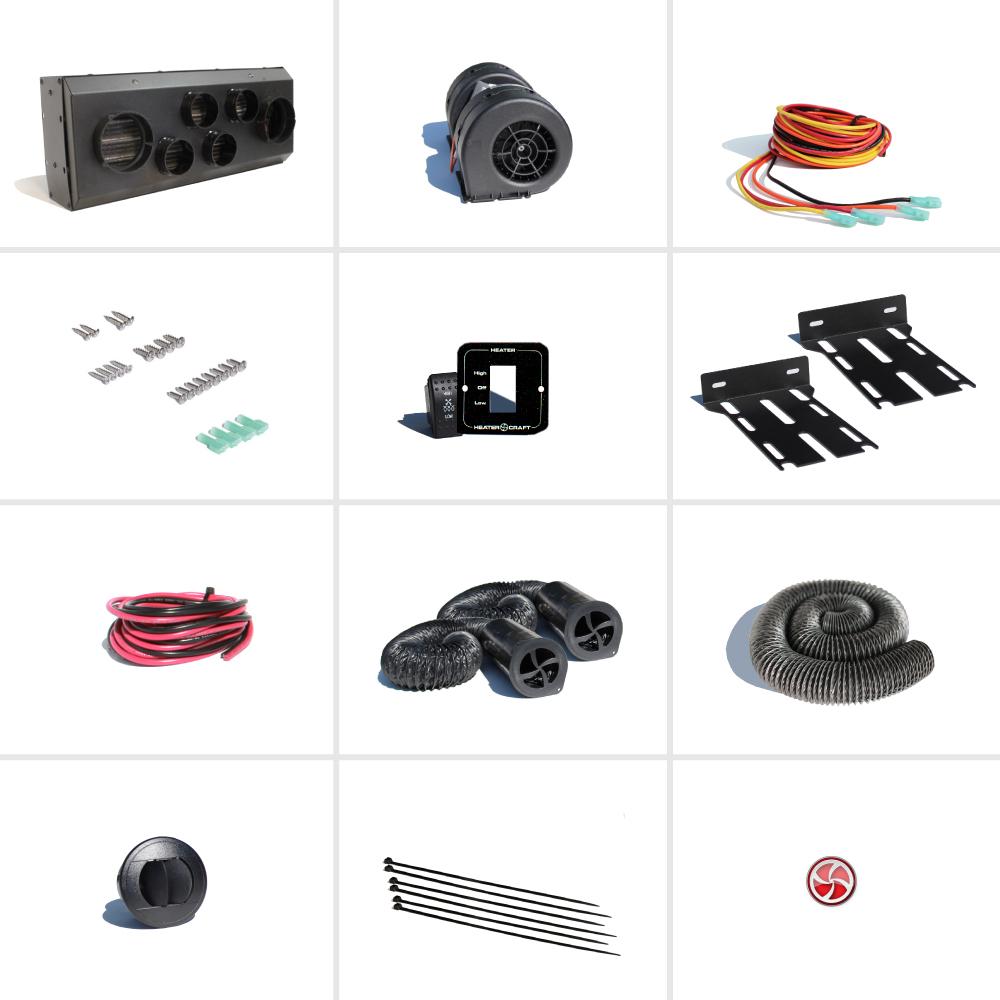

SPORT and COM Kits

• One Heater Unit w/wire harness
• One High Low switch with indicator assembly
• 3" vent hose (6ft per vent)
• Two 6' sixteen-gauge wire
• Universal mounting brackets & screws
• Heavy duty wire ties
• Installation Manual

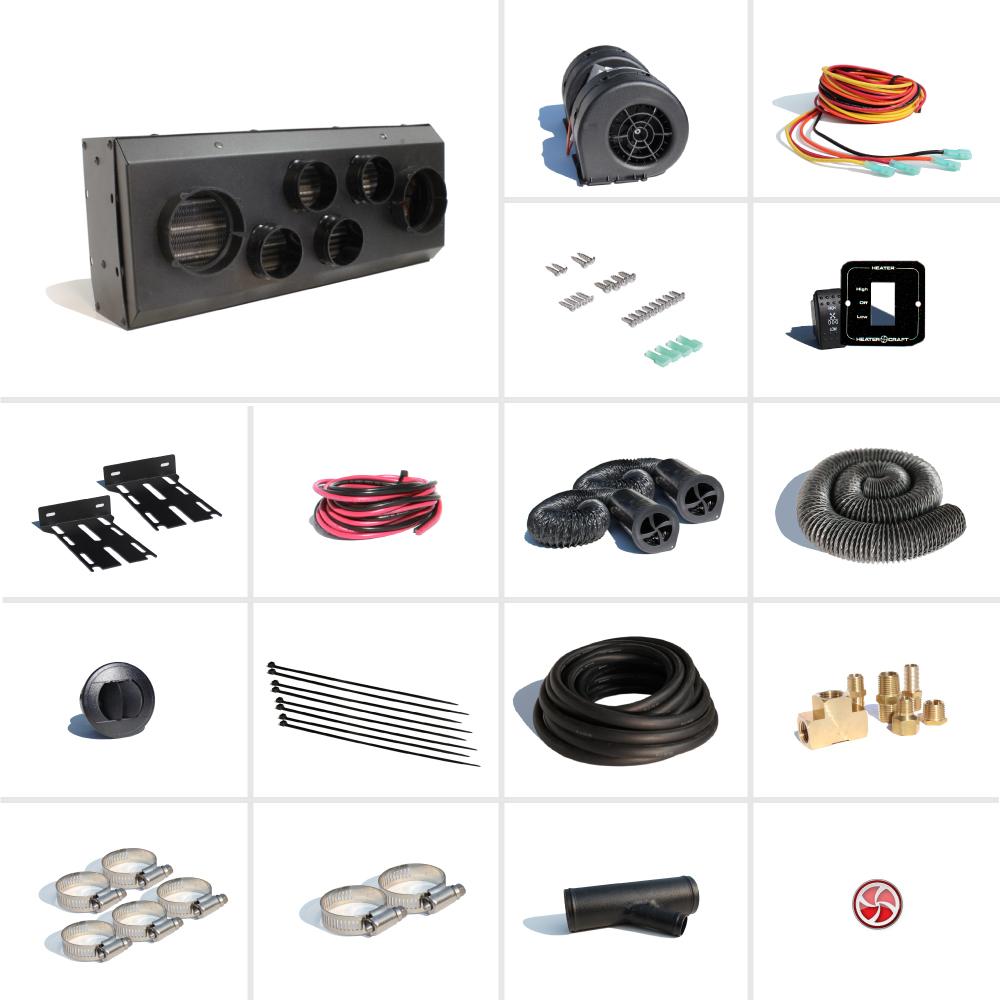

PRO Kits - Includes everything above PLUS:

• 40 ft of Heater Hose
• One Low Idle "Y"
• Universal Brass fittings
• Six Stainless steel hose clamps

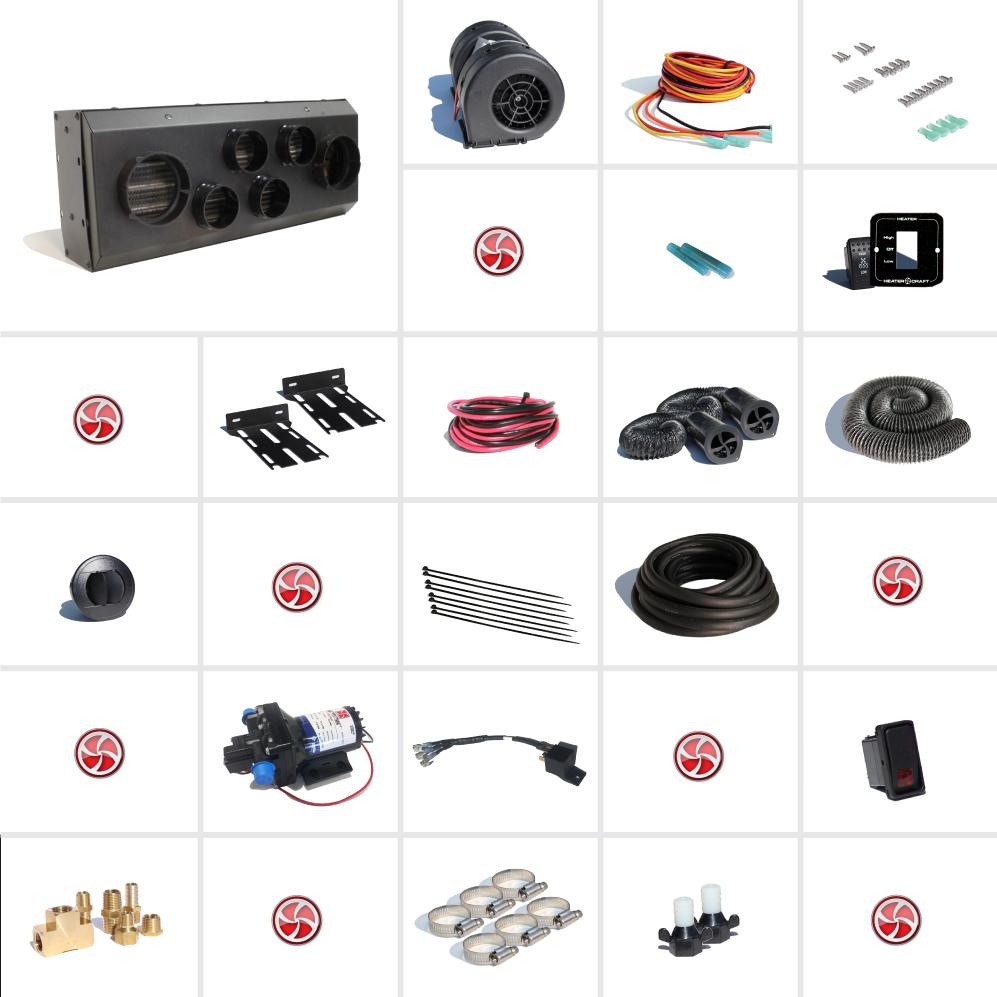

Elite Kits - Includes everything above PLUS:

• One Single Throw Harness
• One Circulation Pump
• Low idle "Y" does not come with the Elite Kit

Note: Ships within 2 to 4 weeks due to current high demand.
