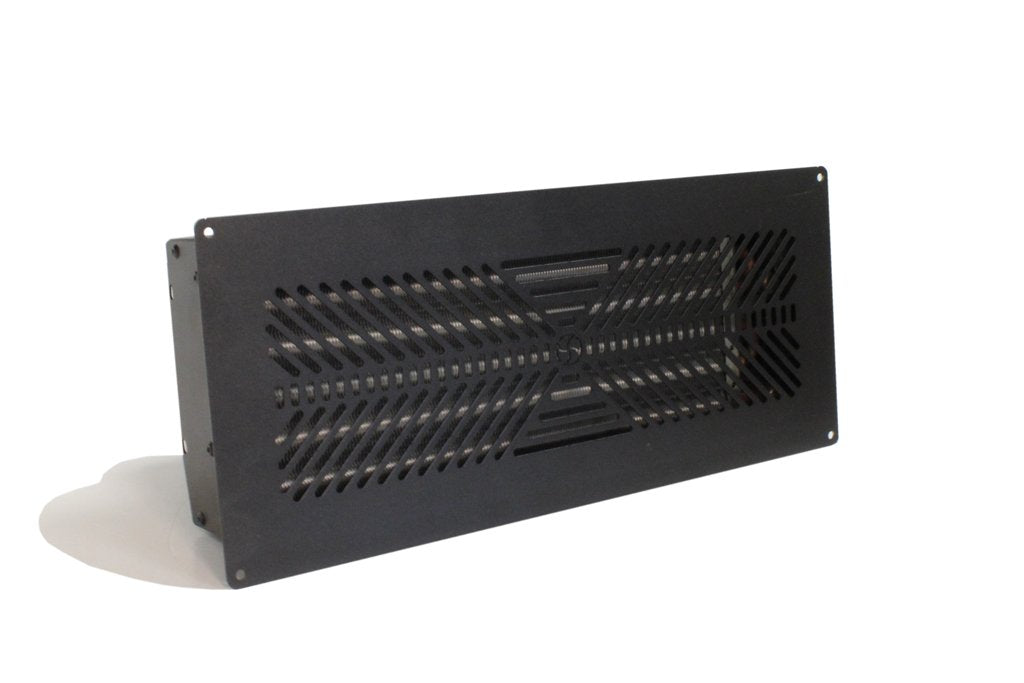

400 Grill Face Series
The 12 Volt,40,000 BTU/hr grilled vent heater is easily vented to bow or rear seating areas. Our heaters are perfect for a late night boat ride, warming up after a swim or simply extending your season on the water.
- 12 Volt (for 24 Volt call 208-687-4400 PST or email email@example.com)
- 40,000 BTU Heater with all new 45 degree face
- 8% faster due to the new 45 degree face without increasing AMP Draw or motor size
- Takes up 5% less space allowing more versatility during installation
- 3% Lighter than previous models
- Amperage: Low 4.4, Med 5.8, High 8.5
- Maximum Estimated: BTU/h: 40,000
- Air Flow: Low 230 cfm, Med 228 cfm, High 263 cfm.
- Hose barb: 5/8"
Dimensions: 16 W x 6.5 H x 9.5 D
Cut out size: 6 ¾” x 16” rectangle
Heater Kits Include
SPORT and COM Kits
- One Flush Mount Heater Unit (Grill Face) w/wire harness

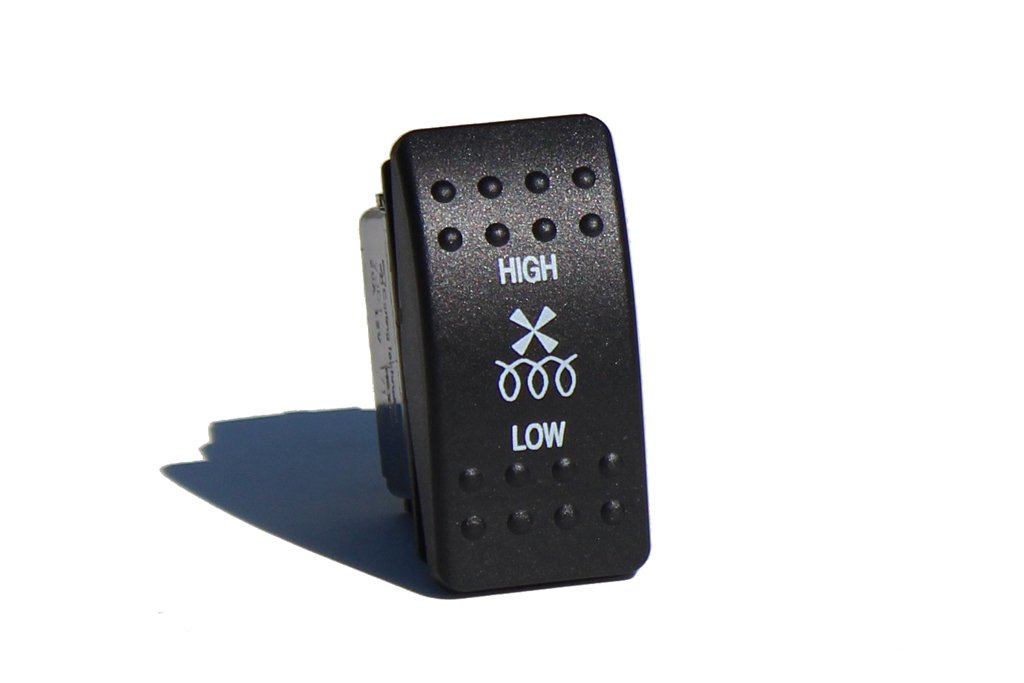

- One High Low switch with indicator assembly
- Two 6' sixteen-gauge wire
- Minor hardware kit
- Installation Manual
PRO Kits - Includes everything above PLUS:
- 50 ft of heater hose
- One Low Idle "Y"
- Universal brass engine fittings
Elite Kits - Includes everything above PLUS:
- One single throw harness
- One circulation Pump
- Low idle "Y" does not come with the Elite Kit
Note: Ships within 2 to 4 weeks due to current high demand.
Had to try several times to match color coded wire to the correct bayonet connector on heater for 3 speed and off settings. Works fine. Thanks.
