US MADE Polaris General OverHead Blowers By Inner Demon

Upgrade your rides with a Polaris General (2019 +) Overhead Blowers By Inner Demon Motor sports. Our US-made, one-piece plug and play system boasts dual 10" Spal Blowers. Enjoy industry-leading power and efficiency with ease.

What makes this an industry leading Overhead Blowers?

• IP 68 Dual 10 inch 802 CFM Spal blowers
• MAX CFM 1604!
• IP 68 Dual control lighted switches for each of the Blowers
• IP 68 lighted on/off switch for the lights
• One PCS 1/8" power coated aluminum frame
• Stainless hard ware
• Plug and Play wire connections to the pulse bar Only, Two crimp connections are required for main harness.
• Keyed powered with pulse bar connection.
• 3 year warranty
• 30 amp max amp draw
• Running amp draw of 15 amps

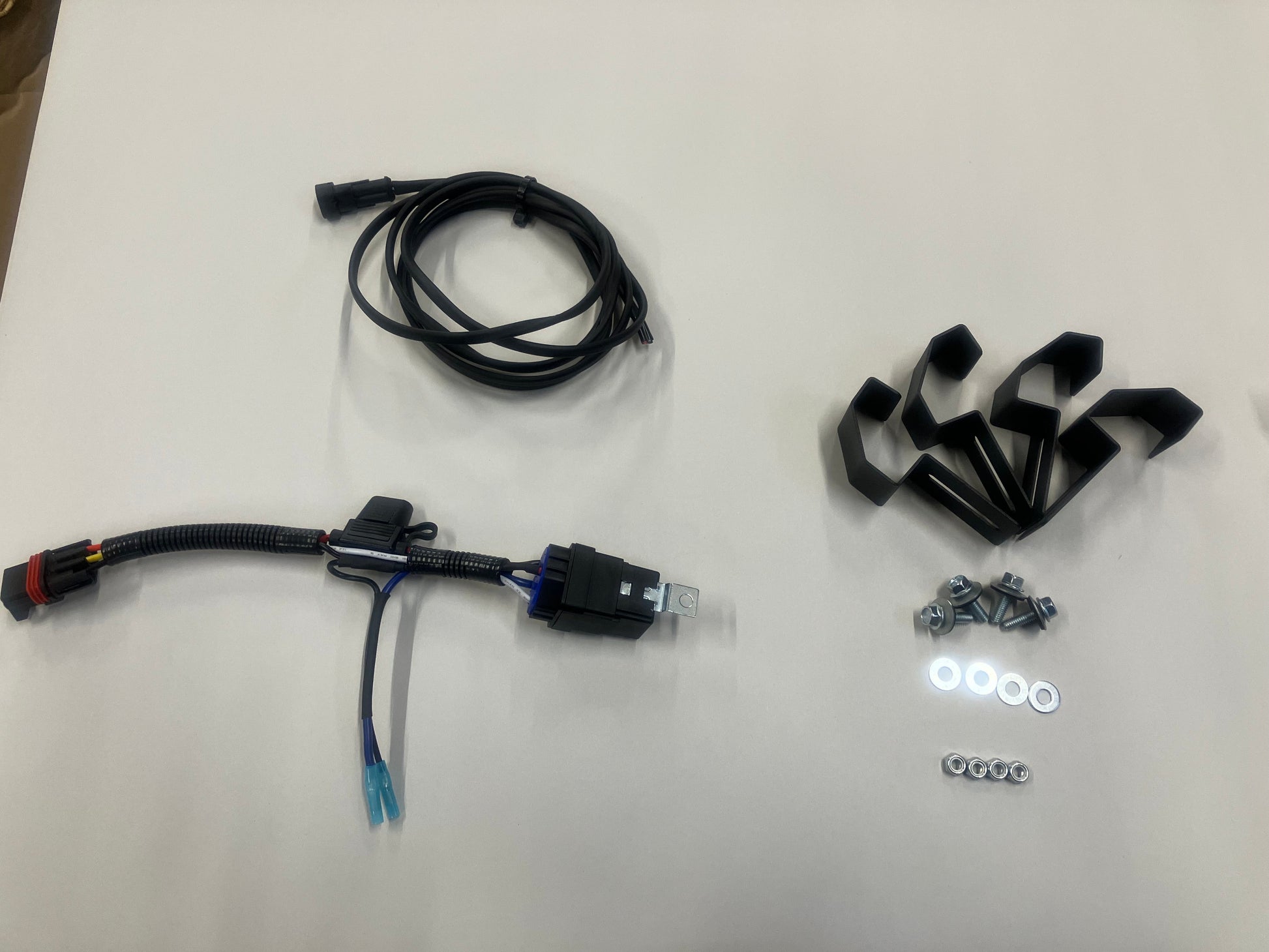

The kit will include the following

• Qty 1 Cyclone Overhead fan assembly with power disconnect
• Qty 1 Mounting Kit
  • Qty 4 Over Profit cage clamps
  • Qty 4 M6x55mm bolts
  • Qty 4 rubber gasket washers
  • Qty 4 stainless washers
  • Qty 4 M6 nylock hex nuts

• Wiring harness

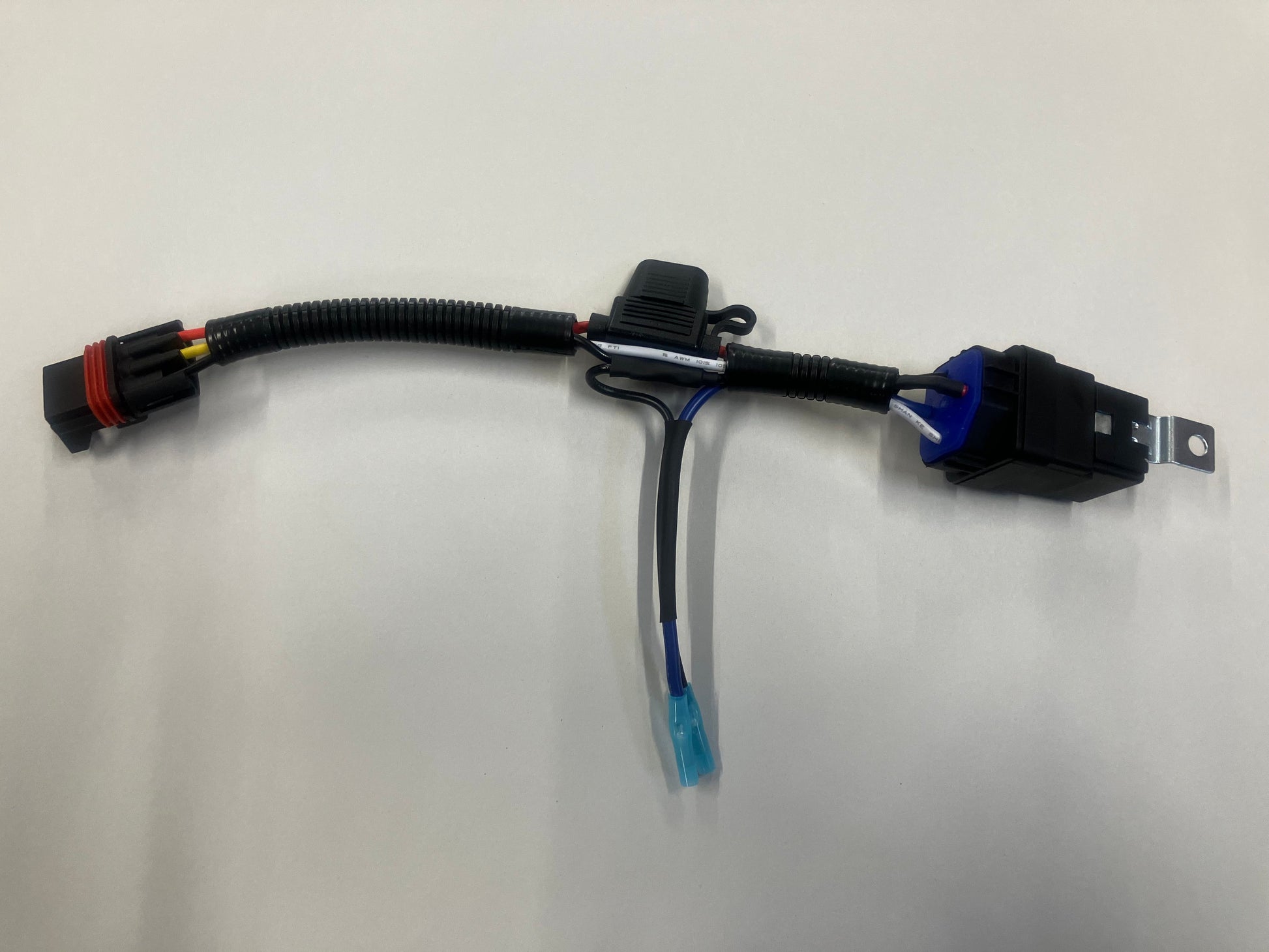

  • Qty 1 40 amp dual fused IP68 relay with Pulse bar plug
  • 8 Foot power harness to run inside (recommended) of the cage or the outside of the driver side A Pillar. One side with a power disconnect and the other side bar to make the final connections.

Tools required

• M10 driver/open end wrench /ratchet wrench with 10mm socket
• Phillips screw driver
• Wire terminal crimpers/strippers/cutters

Designed, Built and tested in The USA. For Riders by Riders

Installation

• Remove front section of the roof
• Route the 8 foot power wire through drive side A-Pilar and the dash into the front hood compartment area close to the pulse bar. The plug is for the fans and remains on the top side.
• Snap the Profit cage over brackets on to the machine from the out side in. They are tight and will flex/bend over a snap into place.

• when bolting down the over head to the bracket the sequence is
  • Bolt
  • gasket washer
  • then through the Frame of the overhead

  • through the bracket
  • washer
  • ny-lock nut
• Its best to have help holding the over into place as you get the first two bolts started
• DO NOT tighten the over head down until all four bolts are in place and the over head is square between the cage.
• Connect power plug to over head harness at the fans.
• Plug the relay assembly into the open pulse bar slot
• Mount the relay
• Trim power leads from the Overhead to length and connect
  • BLACK to BLACK to the open connector
  • RED (from long harness) Blue lead from the Relay
• Test over head and reassemble roof.

*Pictures are representation of the overhead blower assembly and may not represent the  current version of the product.
