US MADE Can Am Maverick X3 Overhead Fans

Upgrade your rides with a X3 Overhead Fans  By Inner Demon Motor sports. Our US-made, one-piece plug and play system boasts dual 10" Spal Fans. Enjoy industry-leading power and efficiency with ease.

What makes this an industry leading Overhead Fan?

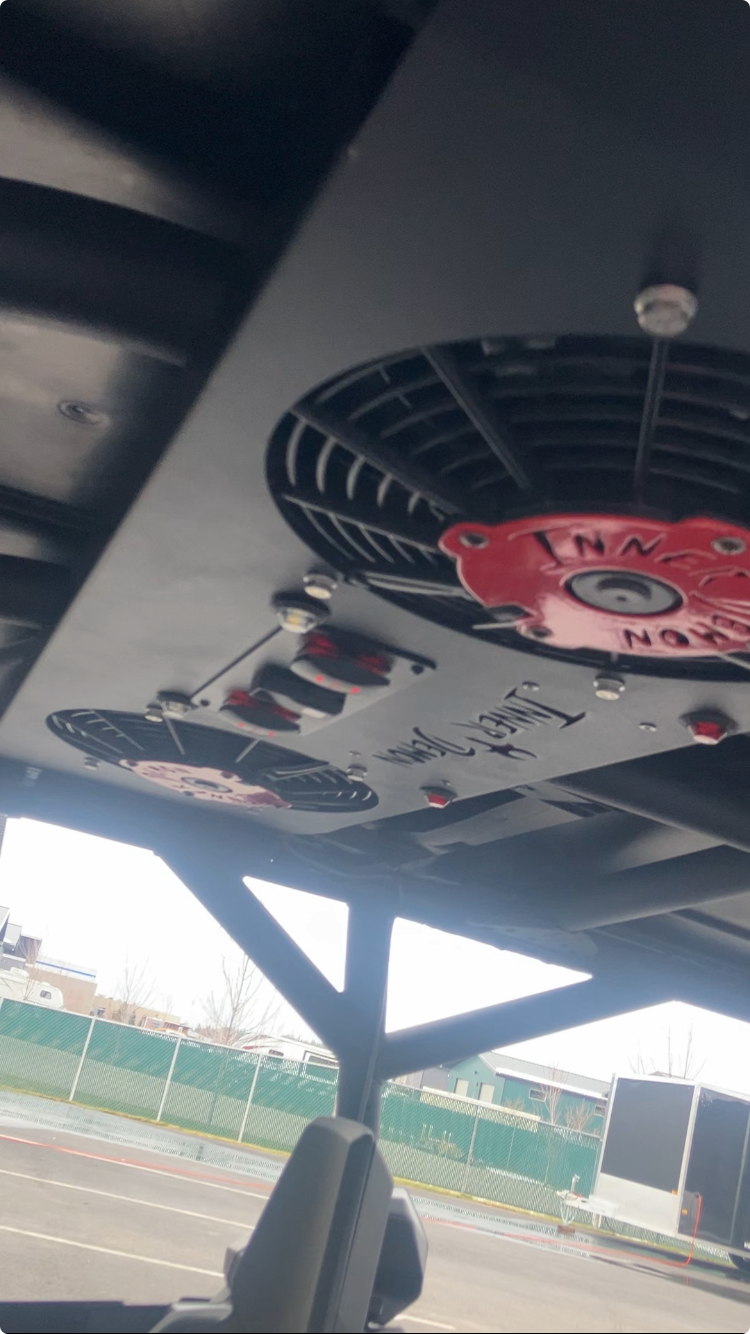

• IP 68 Dual 10 inch 802 CFM Spal Fans
• Recessed for Maxim head room.
• MAX CFM 1604!
• IP 68 Dual control lighted switches for each of the Blowers
• IP 68 lighted on/off switch for the lights
• One PCS 1/8" power coated aluminum frame
• Stainless hard ware
• Two crimp connections are required for main harness.
• Keyed powered
• 4 year warranty
• 22 amp max amp draw
• Running amp draw of 13 amps

The kit will include the following

• Qty 1 Overhead fan assembly with power disconnect
• Qty 1 Mounting Kit
  • Qty 6 2 in p clamps
  • Qty 6 M6x 35mm bolts
  • Qty 6 rubber gasket washers
  • Qty 6 washers
  • Qty 6 M6 nylock hex nuts

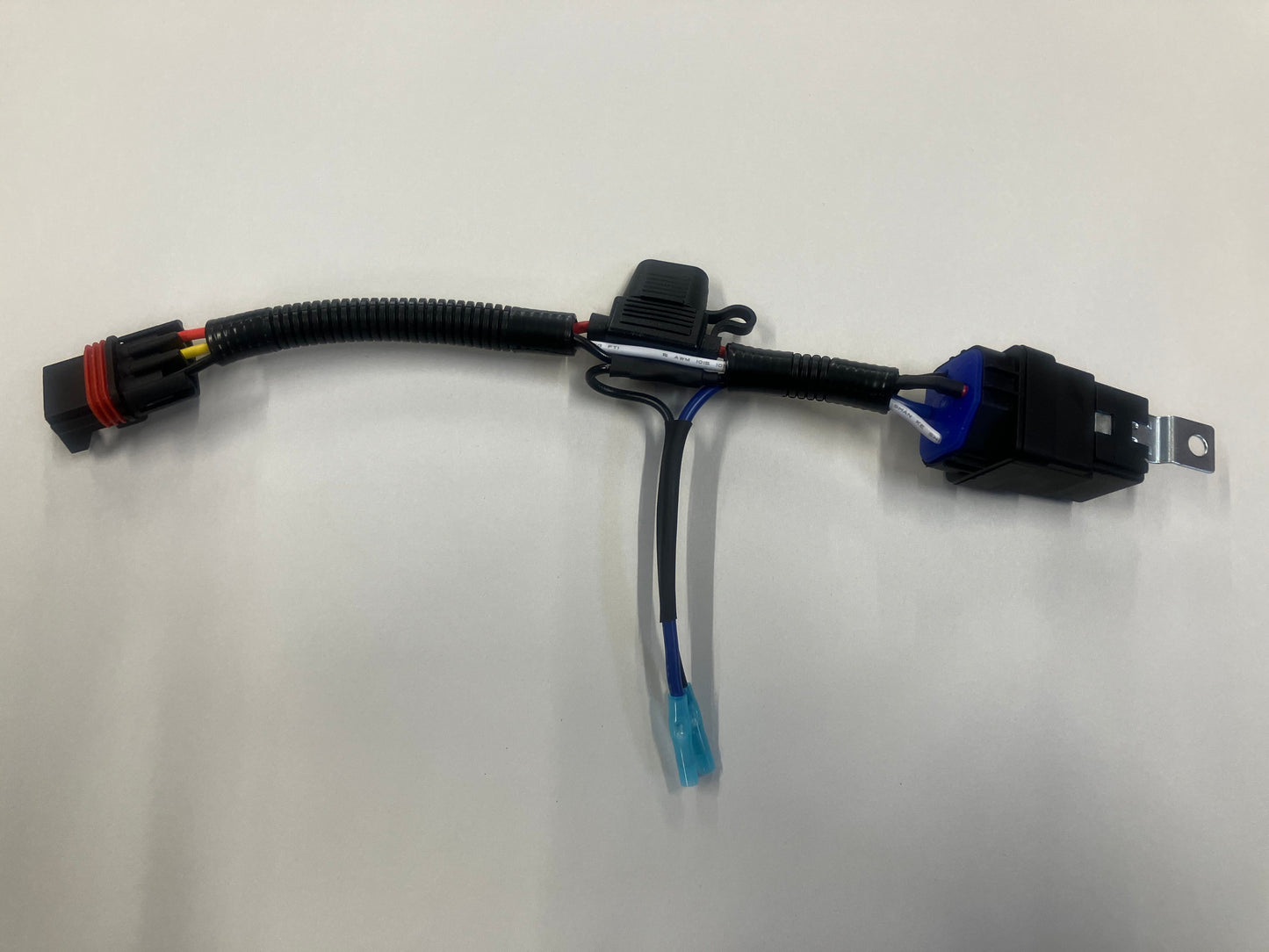

• Wiring harness
  • Qty 1 40 amp fused IP68 relay
  • 10 Foot power harness to run inside (recommended) of the cage or the outside of the driver side A Pillar. One side with a power disconnect and the other side bar to make the final connections.

Tools required for over head install

• M10 driver/open end wrench /ratchet wrench with 10mm socket
• Phillips screw driver
• Wire terminal crimpers/strippers/cutters

Designed, Built and tested in The USA. For Riders by Riders

Installation

• Remove front section of the roof
• Route the 10 foot power wire through drive side B-Pilar and then under the driver seat  into the center console area close to the power bar. The plug is for the fans and remains on the top side.
• Snap the P clamps on to the machine

• when bolting down the over head to the bracket the sequence is
  • Bolt
  • gasket washer
  • then through the Frame of the overhead

  • through the P clamp
  • washer
  • nylock nut
• Its best to have help holding the over into place as you get the first two bolts started
• DO NOT tighten the overhead down until all 6 bolts are in place and the over head is square between the cage. Then tighten down the clamps to lock the overhead into place.
• Connect power plug to overhead harness at the fans.
• terminate the the leads on the relay harness with 1/4" ring terminals
  • Black lead is the ground
  • White lead is the ingition power
  • Red lead is the constant power
• Mount the relay
• Trim power leads from the Overhead to length and connect
  • BLACK to BLACK to the open connector
  • RED (from long harness) Blue lead from the Relay
• Test over head and reassemble console and roof.

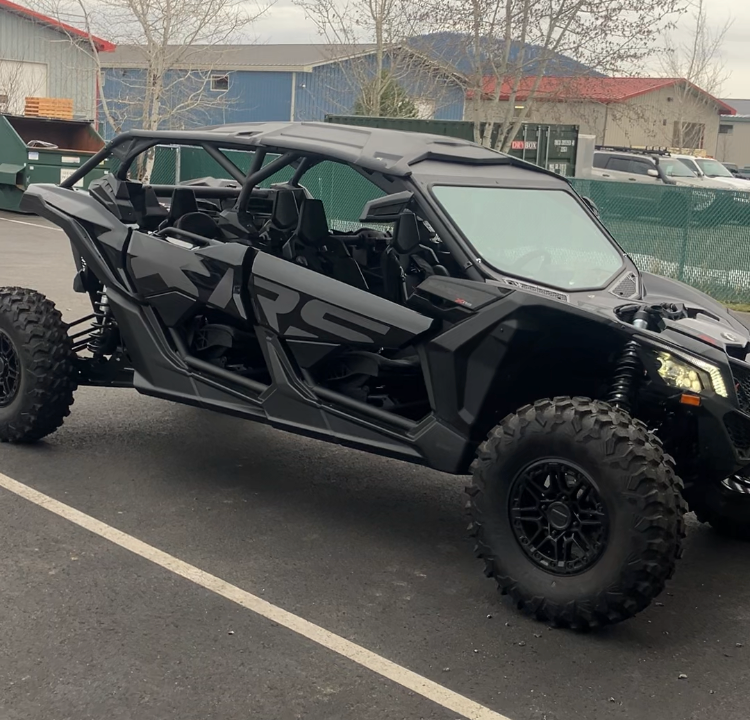

This overhead fit all x3 models

*Pictures are representation of the overhead assembly and may not represent the  current version of the product.
